Aluminized Structure Wrap on Pallet
Aluminum Fiberglass emergency wrap supply
ASW Rolls supply for wildfire defense
ASW Rolls

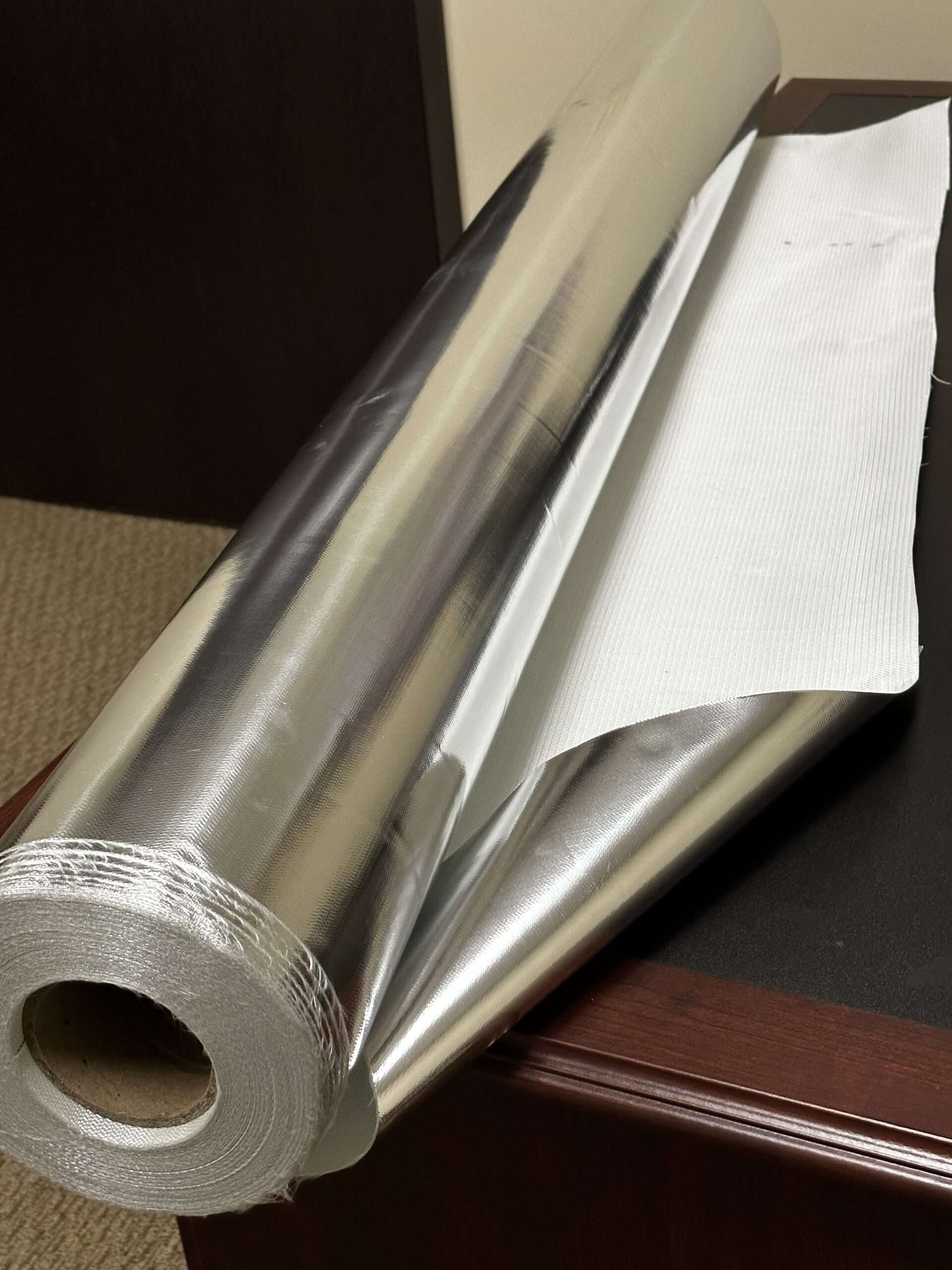

Aluminized Fiberglass Structure Wrap Roll
ASW fabric closeup

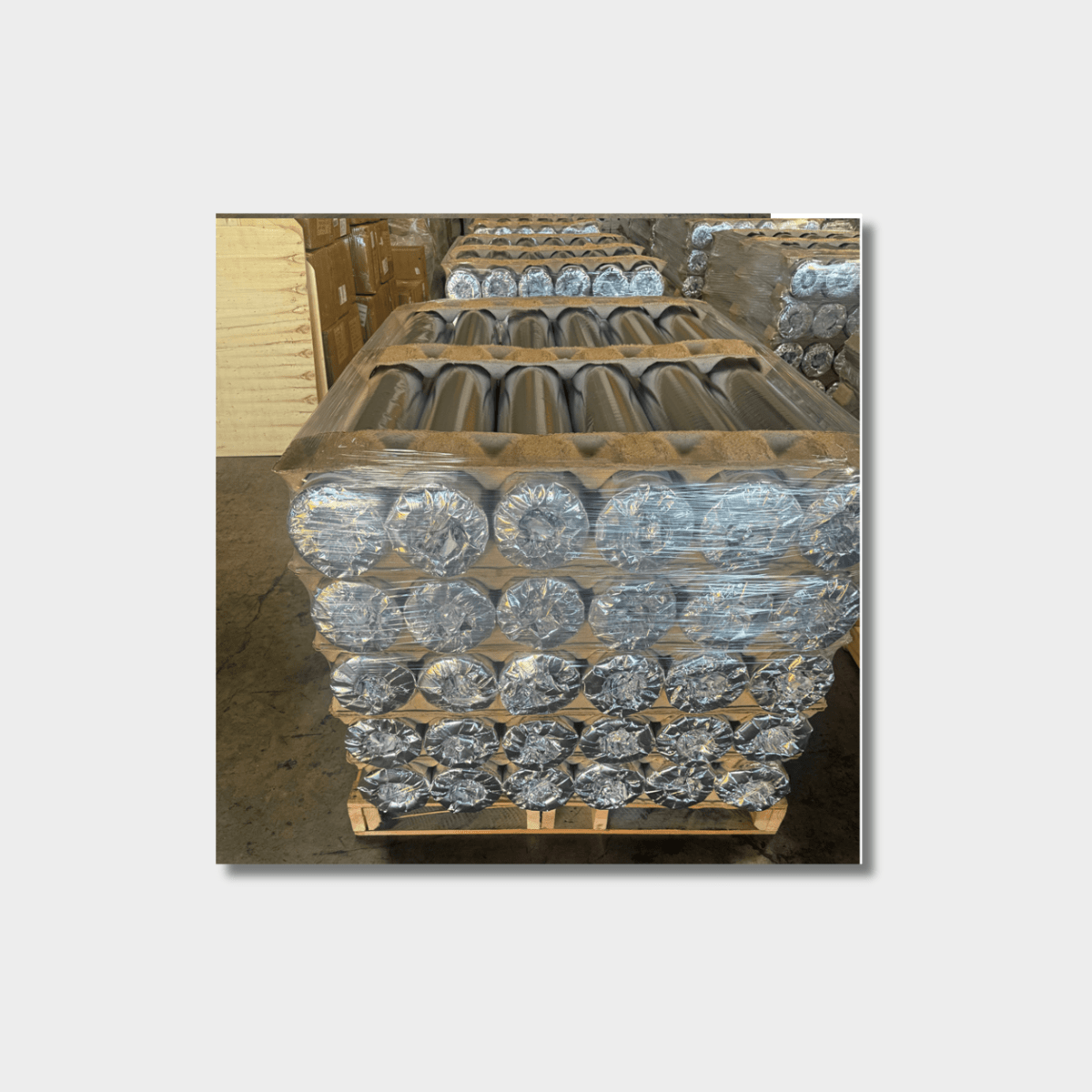

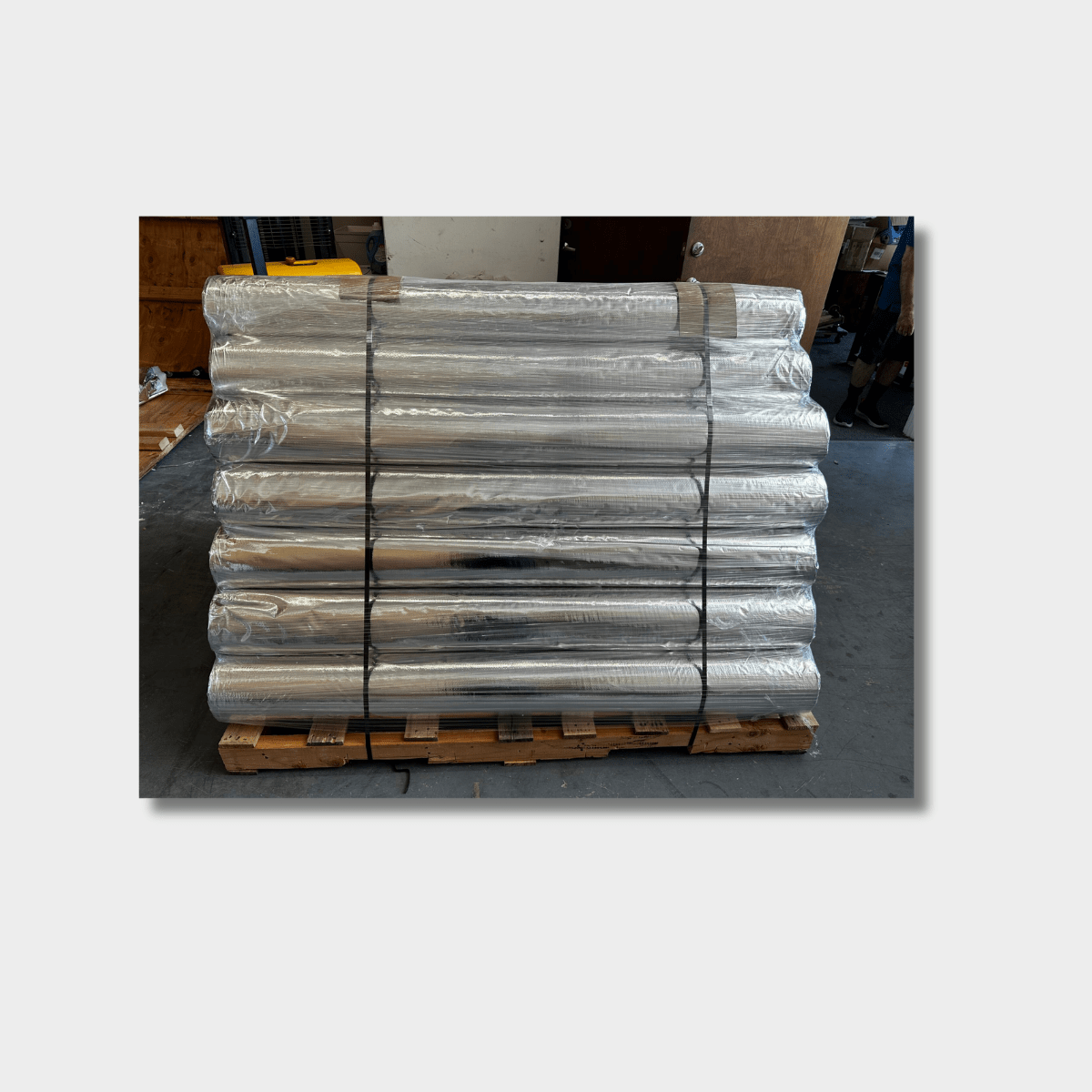

ASW rolls on pallet

Price range: $150.00 through $630.00

ASW – Aluminized Structure Wrap

High-performance aluminum-fiberglass composite fabric available in lightweight, medium, and heavyweight grades. Choose from multiple sizes and thicknesses for wildfire protection, insulation, and emergency shielding. Order today for fast U.S. shipping.

1- Grade: Lightweight - Size: 5' x 100'
$150.00

In stock

500 Sq. Ft., 21 lbs, 4.75 oz/yd²
2- Grade: Lightweight, Size: 5' x 200'
$280.00

In stock

1000 Sq. Ft., 33 lbs, 4.75 oz/yd²
3- Grade: Mediumweight, Size: 5' x 50'
$170.00

In stock

250 Sq. Ft., 16 lbs, 7.4 oz/yd²,
4- Grade: Mediumweight, Size: 5' x 100'
$320.00

In stock

500 Sq. Ft., 28 lbs, 7.4 oz/yd²
5- Grade: Mediumweight, Size: 5' x 200'
$600.00

In stock

1000 Sq. Ft., 57 lbs, 7.4 oz/yd²
6- Grade: Heavyweight, Size: 5' x 50'
$225.00

In stock

250 Sq. Ft., 27 lbs, 14.7 oz/yd²
7- Grade: Heavyweight, Size: 5' x 100'
$435.00

In stock

500 Sq. Ft., 50 lbs, 14.7 oz/yd²
8- Grade: Heavyweight, Size: 5' x 150'
$630.00

In stock

750 Sq. Ft., 73 lbs, 14.7 oz/yd²

SKU: N/A Category: Tags: , , ,

Description

Any weight ASW may be used as “EmergencyWrap” as they provide the same radiant heat shield properties. However, heavier weight ASW makes for a sturdier wrap providing higher tensile strength, more tear resistance, better resistance against wind, and higher heat conduction resistance.  The heavy-weight ASW is also suitable for industrial applications as heat shield.  Lighter weight ASW provides for easier transportation and handling during wrapping.

Grade Roll Size Sq. Ft. Weight oz/yd² Price
Lightweight 5′ × 100′ x 6 mil 500 21 lbs 4.75 $150
Lightweight 5′ × 200′ x 6 mil 1000 33 lbs 4.75 $280
Mediumweight 5′ × 50′ x 8 mil 250 16 lbs 7.4 $175
Mediumweight 5′ × 100′ x 8 mil 500 28 lbs 7.4 $320
Mediumweight 5′ × 200′ x 8 mil 1000 57 lbs 7.4 $600
Heavyweight 5′ × 50′ x 16 mil 250 27 lbs 14.7 $230
Heavyweight 5′ × 100′ x 16 mil 500 50 lbs 14.7 $435
Heavyweight 5′ × 150′ x 16 mil 750 73 lbs 14.7 $630



ASW FireGuard Emergency Structure Wrap Physical Properties
Specification Test Method Lightweight Mediumweight Heavyweight
Base cloth — Woven Fiberglass Woven Fiberglass Woven Fiberglass
Finish — Aluminum Foil Aluminum Foil Aluminum Foil
Weight ASTM D3776/D3776M‐20 4.75 oz/yd2 7.4 oz/yd2 14.7 oz/yd2
Thickness Micrometer 0.006 in 0.008 in 0.016 in
Breaking Strength ASTM D5034 Warp: 110 lb/in avg
Fill: 100 lb/in avg		 Warp: 200 lb/in avg
Fill: 150 lb/in avg		 Warp: 250 lb/in avg
Fill: 200 lb/in avg
Burst Strength ASTM D774 180 psi 250 psi 400 psi
High Temperature Resistance 10 minutes at 400°F (205°C) No Delamination No Delamination No Delamination
Emissivity (Foil Side) ASTM E408 ≤0.05 ≤0.05 ≤0.05
Sheet Radiant Barrier ASTM C1313 / C1313M Meets Requirements Meets Requirements Meets Requirements
Base Cloth Combustibility ASTM E136 Meets Requirements Meets Requirements Meets Requirements
